Customized FPC laser welding machine

Short Description:

Customized New energy battery FPC laser welding machine  and connectors welding machine




Product Details

Feature parameters

Video

Download

How to order

Product Introduction

Customized FPC laser welding machine

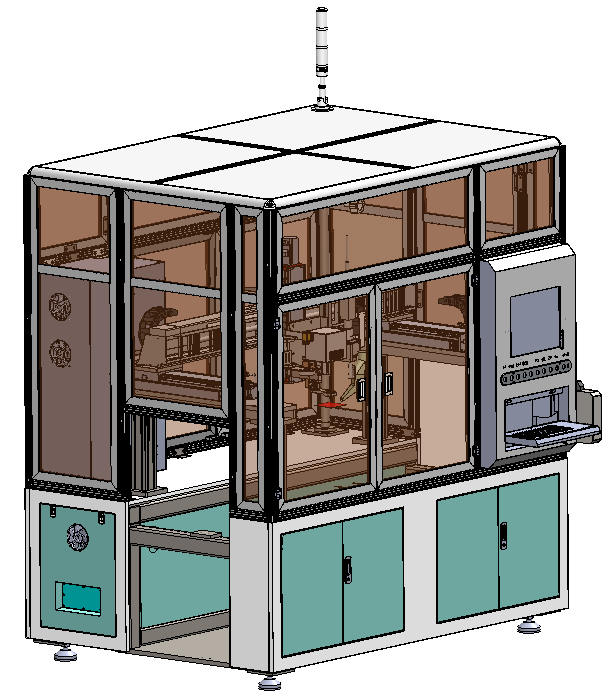

The overall size (length * width * height) of the equipment is 1430mm* 2050 mm * 2700mm (this model is the expected size, the actual size shall be subject to the delivery of the equipment to the customer)

QQ截图20221013140439

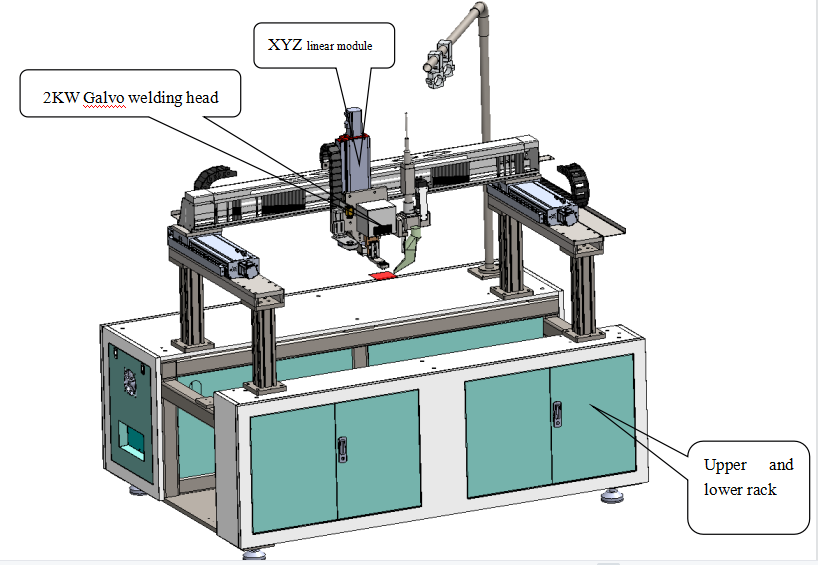

Detailed introduction of welding head position

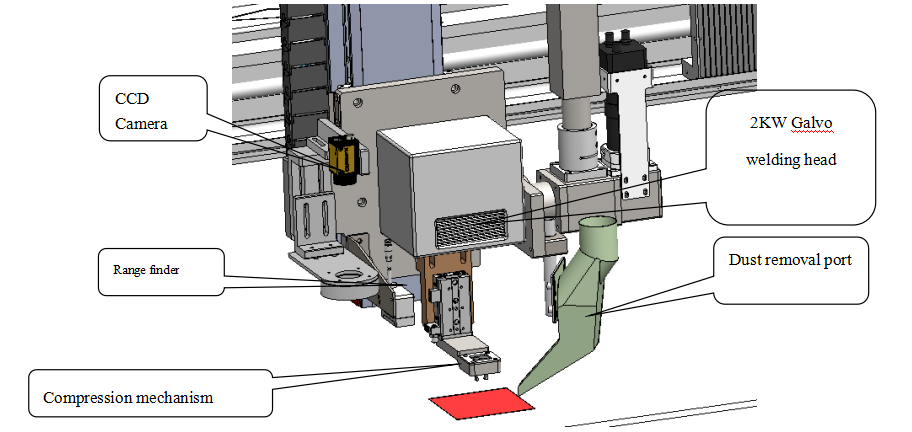

Detailed introduction of welding head position

FPC laser welding machine stand-alone equipment configuration table

FPC laser welding machine stand-alone equipment configuration table

NO

Main part name

Model Specifications

brand

quantity

Remark

1

XYZ linear module + motor

HIWIN

1 set

2

CCD camera

Basler

1 set

3

Laser rangefinder

Keyence

1 set

4

Single point pressing mechanism

Herolaser

1 set

AirTAC cylinders available

5

Galvo welding head

Herolaser

1 set

6

1KW laser

Max

1 set

7

chiller

Tongfei/S&A

1 set

8

Dust collector

Villo/Purehua

1 set

9

upper and lower racks

Herolaser

1 set

10

electrical control system

Including PLC control program and some electrical components

Siemens/Mitsubishi/Omron

1 set



Energy consumption table of single equipment of FPC laser welding machine

FPC laser welding machine single machine energy consumption table

Classification

total machine power

compressed air

vacuum gas

Protective gas

pure water

data

7 KW

1L/min

/

/

/
