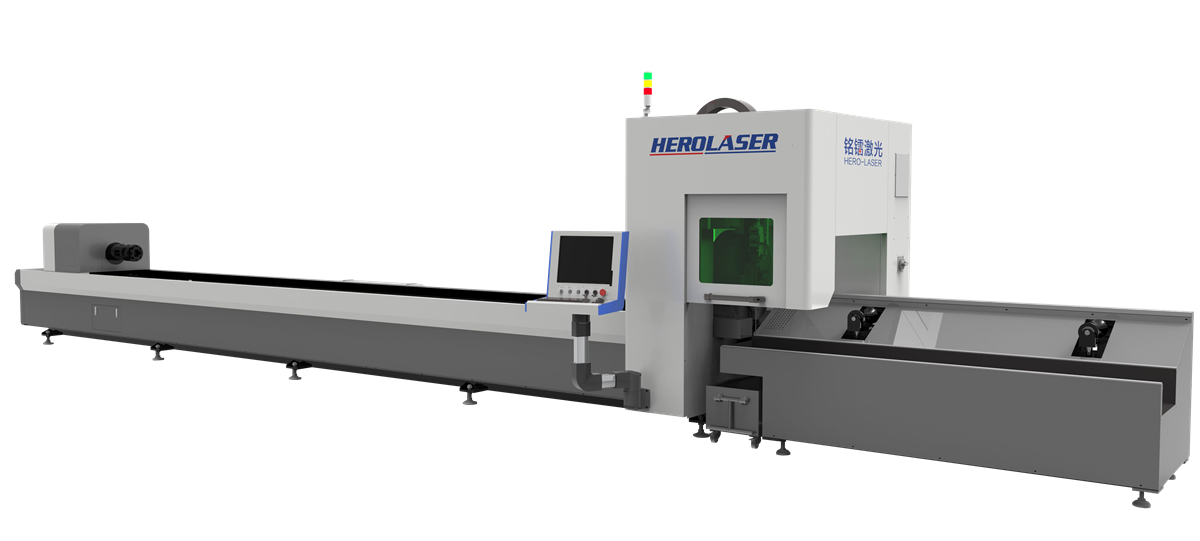

Tube Laser cutting machine (QX series )

Short Description:

QX series laser cutting machine is mainly used for cutting light weight pipes (square pipes, round pipes, rectangular pipes) and other metal pipes. It has a simple and stable structure, good rigidity and high-cost performance.


Product Details

Feature parameters

Video

Download

How to order

Product Introduction

Laser Cutting Machine For Tube

Technical Parameters

Item QX Series
1 Model ML-CP-6016D-QX

ML-CP-6020D-QX

2 Processing pipe range Round tube 20-160 Square tube 20-110 Round tube 20-220

Square tube 20-140

3 Maximum processing length 6800mm 6800mm
4 Chuck maximum speed 100rpm 100rpm
5 X/Y Maximum speed 75mpm 75mpm
6 X/Y maximum acceleration 0.75G 0.75G
7 positioning accuracy ±0.05mm ±0.05mm
8 Repeatability ±0.03mm ±0.03mm
9 maximum load 120kg 150kg
10 Cutting method Fixed adjustable support Fixed adjustable support
11 Feeding method Manual feeding, semi-automatic feeding Manual feeding,

semi-automatic feeding

12 tailing length >110mm >110mm
13 Weight 5.50 tons 5.5 tons
14 Dimensional Size 11000*2300*2400mm 11000*2300*2400mm

Core Features

  1. 1.The laser beam quality is good, the stability is high, the power consumption is low, and the life is long.
  2. 2.Short tail material design, the shortest tail material can reach 110mm.
  3. 3.The graphics can be processed according to the graphics track in the processing system.
  4. 4.Air blowing at the rear of the card, side suction of the front card, the pipe wall is clean, and the cutting dust and smoke are less.
  5. 5.The cutting section of the pipe is smooth without burrs, no slag, no blackening, no yellowing, and can easily realize the cutting of various complex graphics.

Automatic fast feeding

Body structure of pipe cutting machine optimized for fast automatic feeding
The distance between the waiting position and the processing position is very short, which is more than 90% faster than the automatic feeding speed of peers

The cutting surface is clean and free from defects

The pipe cutting section shall be smooth without burr, slag, blackening and yellow; It will not contact with the material surface and scratch the workpiece. It can easily realize the blowing at the tail of the card after cutting various complex graphics. The pipe wall is clean and the cutting dust and smoke are less

Ability of professional pipe cutting

The front chuck holds the full stroke without changing the claw. The rear chuck is blown at the tail, the pipe wall is clean, the cutting dust and smoke are less, the empty stroke is high-speed, the acceleration is large, the cutting response is fast, and the corner is not easy to burn

dfadsfh

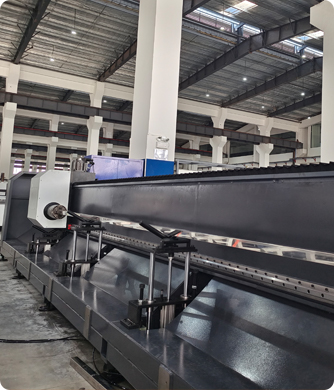

Actual picture of laser pipe cutting machine
Actual (1)
Actual (2)
Actual (3)
Actual (4)

Application Scenarios

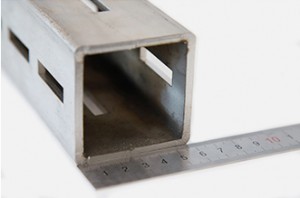

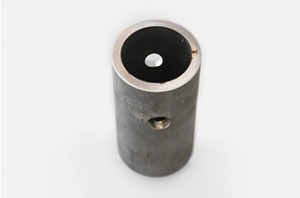

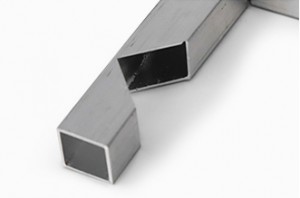

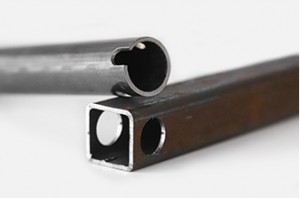

The feeding is fixed, the height of the supporting wheel can be adjusted manually, and the blanking slope is combined with sliding; It can perform high-speed and high-quality laser cutting on round tube, square tube, rectangular tube, waist tube and other profiles

cutting (1)
cutting (3)
cutting (4)
cutting (2)
