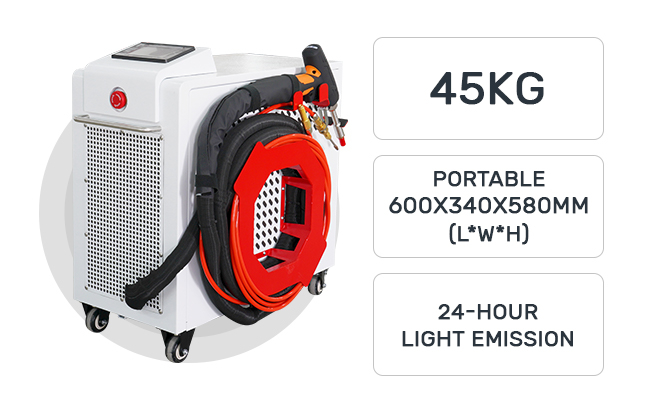

Portable Handheld Laser Welding Machine

Short Description:

Herolaser Portable handheld fiber laser welding machine, is using the latest generation of fiber laser module, adopting independent research and development of wobble welding head, fill the blank of the handheld laser welding industry.


Product Detail

Product Introduction

Handheld laser welding belongs to the field of laser welding, the laser welding as one of the three most important applications in laser processing. Over the past ten years, laser marking leads the first increase, tends to be popular, and the laser cutting begin from the earliest YAG, CO2 laser cutting developed to fiber laser cutting, has also been great promotion. Laser welding has been promising, but the market demand has not increased significantly, until the explosive growth of new energy vehicles in recent years, and the expansion of power battery led to the growth of laser welding.

20211210044314681

Technical Parameters

Optical performance parameters

Laser Power

1500W

Output laser wavelength

1075nm ± 10mm

Maximum modulation frequency

50KHZ

Operation Mode

Continuous / Modulation / Timing

Power stability

<5%

Laser response time

<10us

Indicates the laser wavelength

650nm

Indicating Light Adjusting Range

<1mW

conduction system parameters

Port Type

Automatic Wire Feeding Welding Head

Collimating focal length 50mm
Focusing Distance 150mm
Transmission Length Standard 5±0.5m, (Optional 10m)

Working Ambient Temperature

10~50 ℃

Working Ambient Humidity

≤ 85 degree

Cooling and Protection Gas

Inert Gas

Input Voltage

220 VAC/50Hz/60Hz

Machine Power

≤4.8KW

Core Features

1. WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece
2. Built-in dual-temperature dual-control industrial chiller
3. Constant temperature regulation and heat dissipation to ensure the heat dissipation of the core optical circuit components.
4. Simple operation, can be easily operated with simple training
5. Beautiful products can be welded one take without a master

dfadf_03

Fillet welding

dfadf_12

Lap welding

dfadf_10

Tailor welding

dfadf_05

Stitch welding

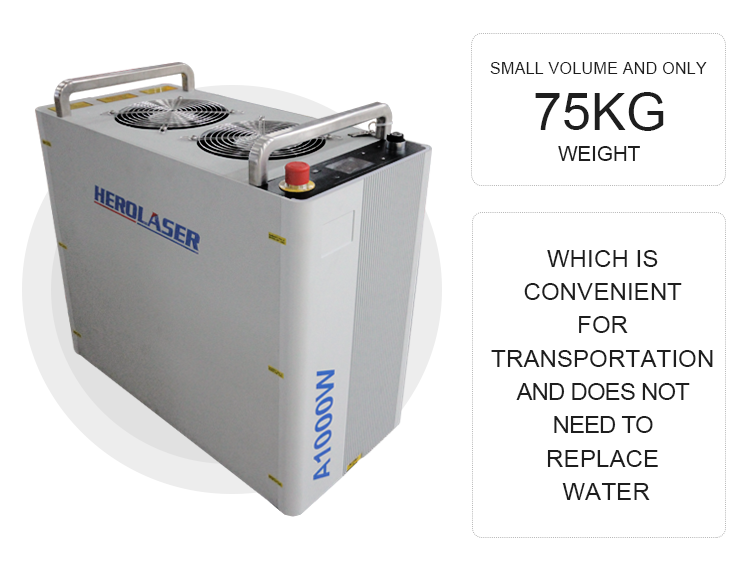

Air-cooling Handheld Fiber Laser Welding Machine

On present sales of 1000W and 1500W air-cooling laser welders. The advantage lies in the high internal integration, small volume and only 75KG weight, which is convenient for transportation and does not need to replace water.

1. Flexible and convenient
2. Health-protective and environmental friendly
3. Cost-effective
4. Strong welding
5. Beautiful welding
6. WOBBLE welding technology

handdfui1

Application Scenarios

This handheld laser welding machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.

applica (1)
applica (2)
applica (3)
applica (5)
applica (6)
applica (4)
tupappli (2)
tupappli (3)
tupappli (4)
tupappli (1)
