Product Introduction

FPC/cover film laser cutting machine is a new type of equipment developed by Herolaser. It adopts a new process of ultraviolet laser processing and has the characteristics of higher cutting speed, finer edge chipping, and small heat affected zone. Using marble platform and high-precision transmission module, stable and reliable laser selection, with high-precision galvanometer control module and laser cutting control system specially developed by Herolaser Laser, it is a collection of the latest precision machinery, CNC technology and other disciplines. High-tech products with stable structure, good rigidity, light weight, small footprint, good processing quality and high efficiency. It is a highly cost-effective laser cutting that combines efficiency, precision and stability equipment.

Model Features

Using UV laser processing, the thermal impact of the product cutting is small.
Using galvanometer laser lens, it can be processed in any shape, cutting without residue, and the corners are smooth.
Adopt high-precision visual positioning system to achieve precise cutting.
Adopt marble platform and precise optical path design to ensure high shock resistance and high-quality laser transmission.
Adopt high negative pressure vacuum machine to adsorb products to ensure positioning stability.
Configure a smoke purification system to take away smoke and dust in time to avoid contamination of the ring mirror.
Single-station processing platform and double-station processing platform mode are available.

Product advantages

High-performance UV laser processing; real cold processing, with a series of advantages of laser cutting.
The machine adopts a solid marble structure with excellent seismic performance to ensure machine performance and overall processing accuracy. : Subvert the industry standard without carbonization on the bottom surface, the incision is neat and clean, and there is no burr.
High-speed cutting of any open size, cover film, PI reinforcing sheet, PP reinforcing sheet and other materials.
The non-contact cold working process is adopted, and the material is not deformed, which is suitable for high-precision material cutting.
The software automatically cuts, with the function of cutting multiple sheets at the same time.
Easy to learn software Control software of Windows system, Chinese interface, easy to operate.
Preview function before processing to avoid cutting scrap sheets.

Application Range

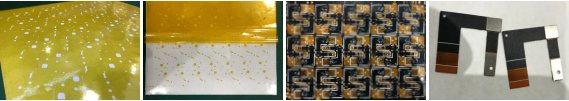

It is used for the cutting process of PCB circuit boards, FPC and rigid-flex boards, cover films, glass covers, fingerprint identification modules, camera modules and other products.

Technical Parameter
	Item	Parameters
	Model	ML-CU-DZ-00-HW10
	Processing size	400*400mm(Max. customizable)
	Machining table	Vacuum adsorption
Laser Galvo system	Type	Nanosecond UV
	Laser wavelength	355nm
	Laser power	10W/15W/20W/30W (optional)
	Focus spot	Less than or equal to 35um
	Single scan size	40mm*40mm
	Galvo scanning speed	10mm/s-5000mm/s （adjustable）
Camera Parameter	Number of cameras	1PCS
	Camera pixel	5000000
	Camera positioning accuracy	±5um
	Software support system	Win7(32-bit)
Software System	Software calibration function	Vision automatic correction
	Software permissions	Administrator/Operator
	Supported file formats	Dxf/gerber
	Overall size(length X width X height)	168414121872mm
Device Body	Total power	Less than or equal to 3KW
Device Body	Total Weight	3000Kg
Equipment Installation Condition	Microseismic requirements	Foundation amplitude＜ 5um
	Ground bearing	500Kg/m
	Compressed air	&0.4 Mpa
	Dust removal system	Automatic soot purification system
